Secure Webchat

Setup on Bot Platform

Login to Bot platform
Select channel menu

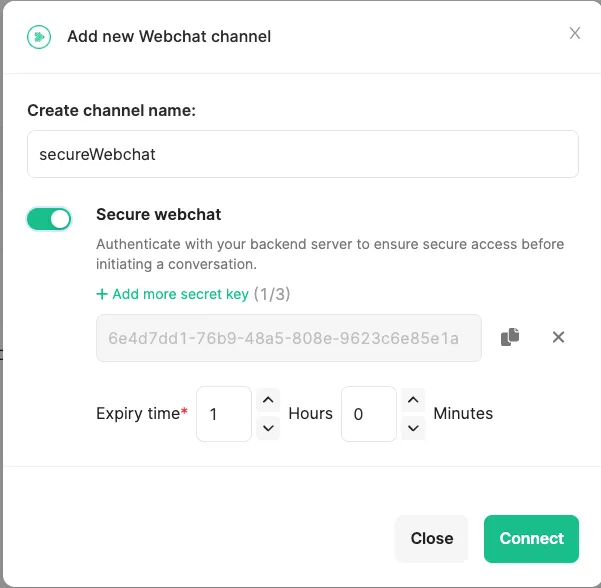

Create webchat channel with enabled secure webchat

Setup on Client BE code

Generate authToken with API, /token/auth and it will return authToken (one time use).

curl --location 'https://webchat.amitysolutions.com/token/auth' \
--header 'Content-Type: application/json' \
--data '{
    "channelId": "channelId",   // channelId in channel Setting
    "token": "userId1", // userId that we normally put in html
    "serverKey": "secretKey" // one of valid serverKey in channel Setting
}'

Use authToken to generate accessToken with API, /token/access and it will return accessToken.

curl --location 'https://webchat.amitysolutions.com/token/access' \
--header 'Content-Type: application/json' \
--data '{
    "authToken": "authToken"
}
'

Insert the accessToken into the SDK configuration to initiate the chat. Steps 1 and 2 will be handled by the customer’s backend. For example, Website A has its own authentication system. Their customers log in to their website, and the backend needs to execute Steps 1 and 2 to obtain an access token, then initiate the Webchat session using this access token.

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>Customer website</title>
  </head>
  <style>
    /* check breakpoint */
    @media (max-width: 1366px) {
      #ams_sdk-frame-container {
        width: 100% !important;
        height: 100% !important;
        bottom: 0px !important;
        right: 0px !important;
        border-radius: 0px !important;
      }
      #ams_sdk-frame-content-header {
        border-radius: 0px !important;
      }
    }
  </style>

  <body></body>

  <script type="text/javascript">
    const DESKTOP_ENDPOINT =
      "https://webchat-sdk.staging.amitysolutions.com/sdk/ams_sdk.js";
    (function (d, t) {
      var v = d.createElement(t),
        s = d.getElementsByTagName(t)[0];
      v.onload = function () {
        const reload = window.ams_sdk.chat.load({
          channelId: "channelId", //required
          mode: "bubble", //required
          cssLinks: ["http://127.0.0.1:5500/style.css"],
          displayName: "displayName",
          token: "token",
          placeholder: {
            ready: "Type a message...",
            unAuthorized: "Unauthorized",
          },
          secure: {
            enabled: true,
            accessToken:
              "accessToken",
          },
          imageUrl:
            "https://static.wikia.nocookie.net/b8ebd9b1-6590-433e-b23d-28108708220f",
          botImage:
            "https://i.ibb.co/0jZzQYH/Screen-Shot-2021-08-31-at-11-18-20-AM.png",
          botName: "QQQQQ",
          bubble: {
            //Edit size of chat widget icon
            button: {
              style: `

                background: green;
                border-radius: 100%;
                border: none;
                width: 100px;
                height: 100px;
                bottom: 200px;
                right: 200px;
              `,
              //Edit image of chat widget icon
              image: {
                style: `
                  width: 100%;
                  height: 100%;
                `,
                url: "https://assets-global.website-files.com/5eddccffdb3c6a27f79757c1/5eeb0be6ba225a23e09b0a80_amity-logo.svg",
              },
            },

            frameContainer: {
              width: "500px", // width of frame container
              height: "500px", // height of frame container
              style: `
              right: 0px
              `,

              header: {
                title: {
                  text: "Amity Chat",
                  style: `
                    color: #000;
                    font-size: 20px;
                    font-weight: bold;
                  `,
                },
                style: `
                  background: blue;
                  height: 50px;
                `,
              },
            },
          },
          richmenuSetting: {
            fixedHeight: 200, //px if add this divided by will not effect
            // dividedBy: 5, // formular of this is window.innerWidth (100% width of iframe) / 1.666666666666666666666666666 / dividedBy
          },
        });
        document.getElementById("reload-btn").addEventListener("click", () => {
          reload("newtoken", {});
        });
      };
      v.src = DESKTOP_ENDPOINT;
      v.type = "text/javascript";
      s.parentNode.insertBefore(v, s);
    })(document, "script");
  </script>
</html>
